AEM X-Series Boost Pressure -30inHg 35psi Gauge

X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.

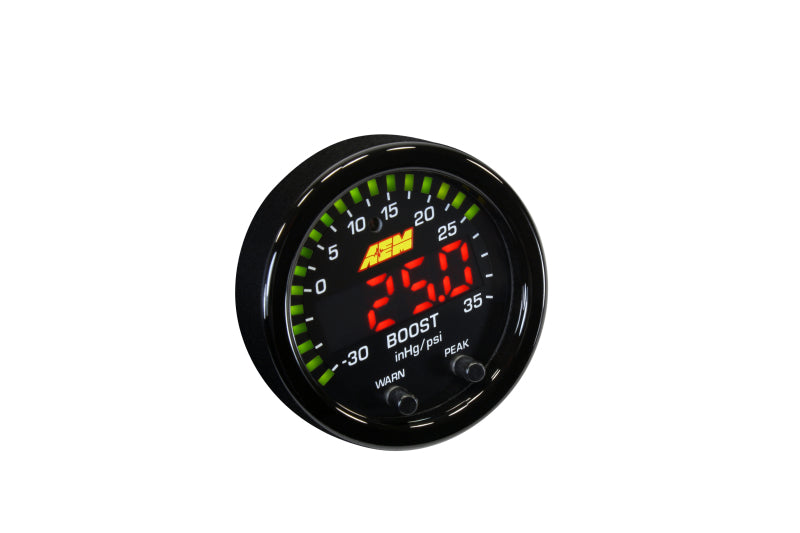

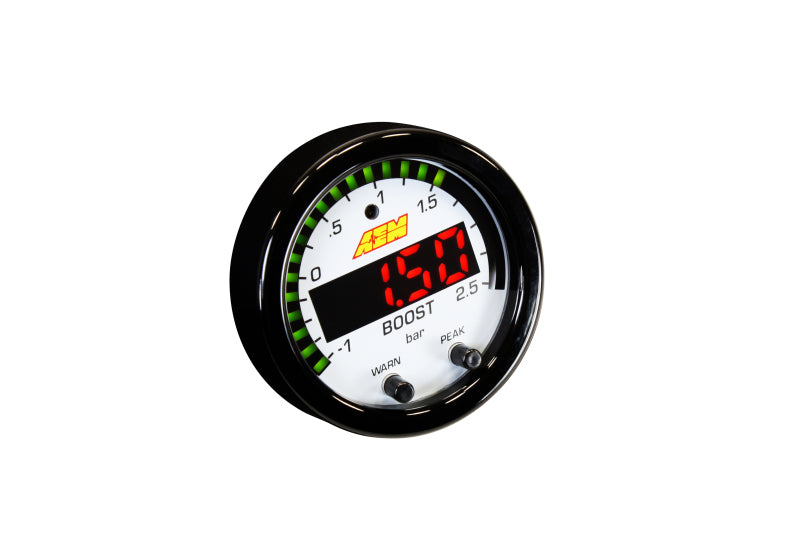

X-Series Boost Pressure Gauge -30inHg-35psi - -1-2.5bar, Black Bezel and Black Faceplate

• Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!

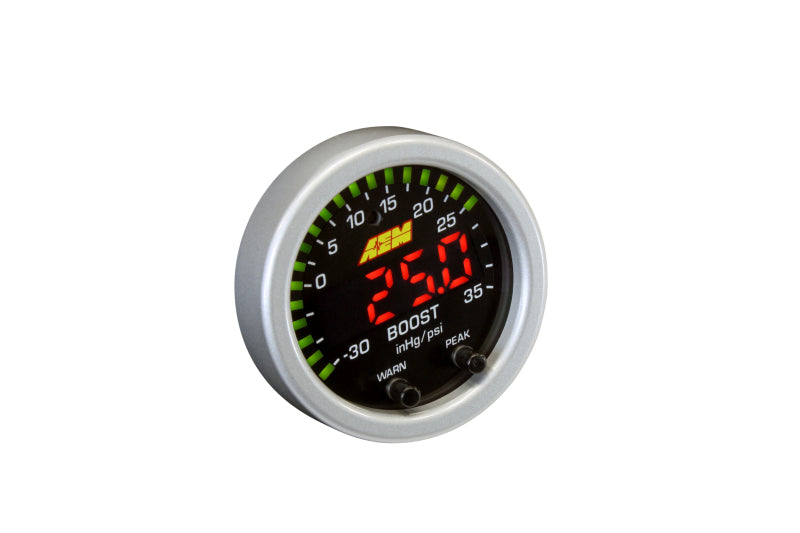

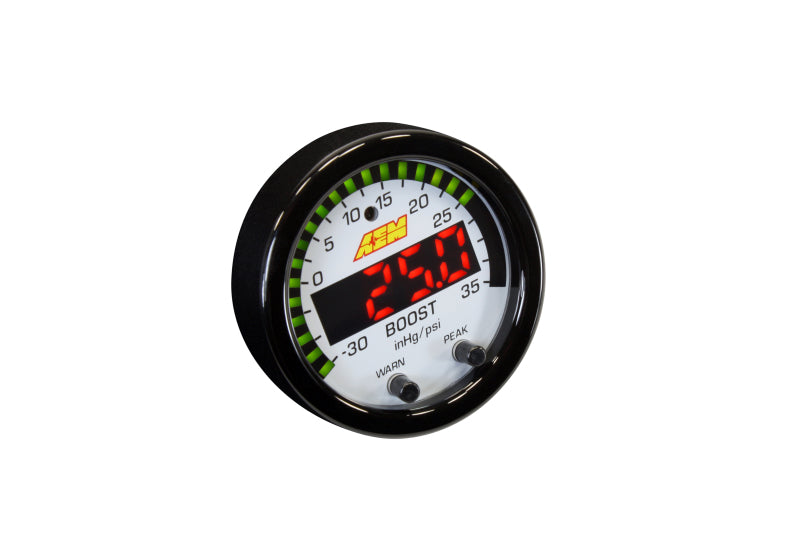

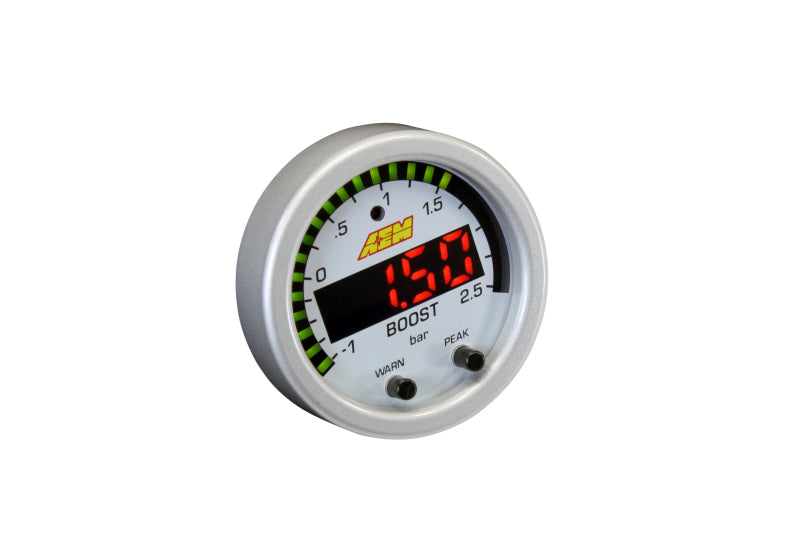

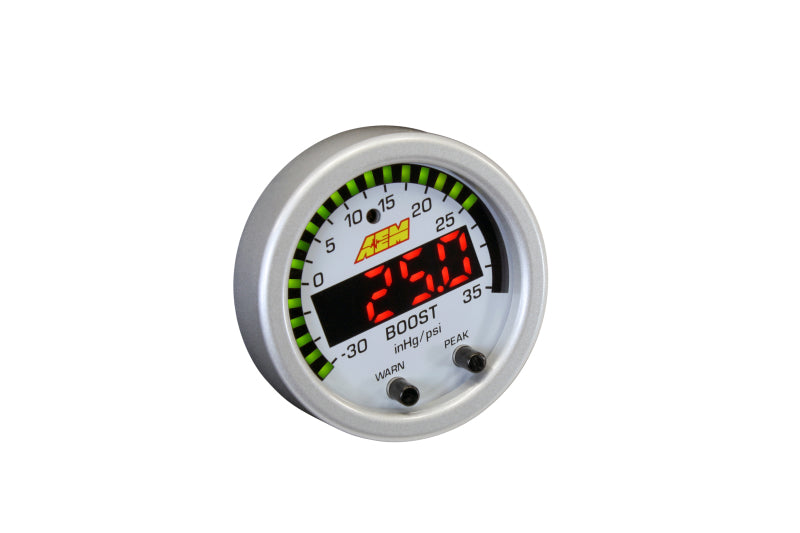

• Optional silver bezel and white faceplate accessory kit available (sold separately)

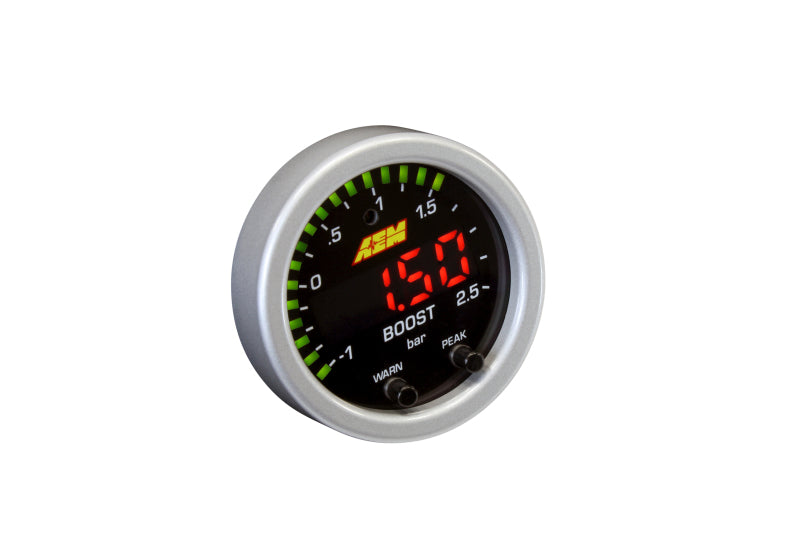

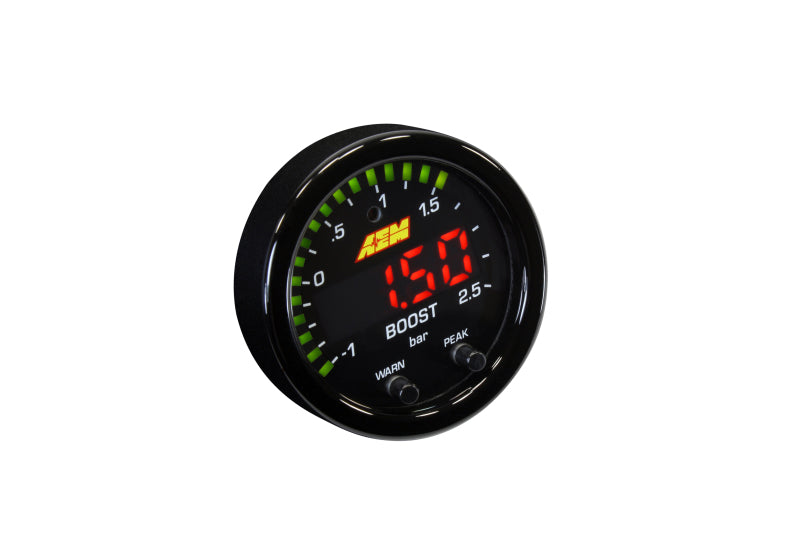

• User selectable standard or metric display ( -30in/Hg~35PSI / -1~2.5BAR)


• AEMnet CANbus-enabled for transmitting data to EMS or Data Logger


• 0-5v analog outputs for transmitting data to EMS or Data Logger


• 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods


• Programmable center LED is 87% larger than original AEM gauges


• 24 green outer LEDs for quick reference to engine parameter


• Auto dimming sensor delivers ideal display brightness


• Positive locking connectors provide secure connection


• Peak/Recall via gauge face buttons


• User selectable threshold warnings
