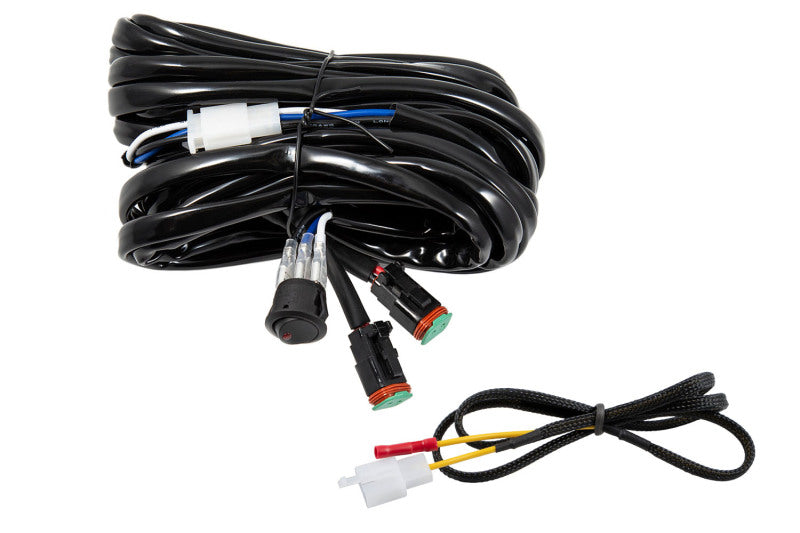

Diode Dynamics Heavy Duty Dual Output Light Bar Wiring Harness

Overview Stage Series.This harness is intended to be used with our Stage Series light bars and pods without backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a two-way toggle switch and uses high capacity 14AWG wiring and Deutsch DT connectors for simple plug-and-play installation.This harness safely powers up to 25A of auxiliary lamps. Please refer to the current draw data below.SS3 Sport: 1.1ASS3 Pro: 2.7ASS3 Max: 3ASS6 Light Bar: 1.9ASS12 Light Bar: 4.2ASS18 Light Bar: 5.7ASS30 Light Bar: 9.8ASS42 Light Bar: 16ASS50 Light Bar: 18.5AExperience. After over a decade in business Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors we assemble and engineer products in the United States for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!
After over a decade in business Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors we assemble and engineer products in the United State.
Included in the box:
One (1) wiring harness
One (1) toggle switch
One (1) OEM aux switch adapter

• Powers up to two Diode Dynamics 50'' 42'' 30 and 18 Stage Series light bars"


• Powers up to two Diode Dynamics 50'' 42'' 30 and 18" Stage Series light bars


• Connects directly to the battery to power your light bar


• Black wire sheathing to protect cables


• Dual Deutsch DT output connectors


• High capacity 14AWG wiring
