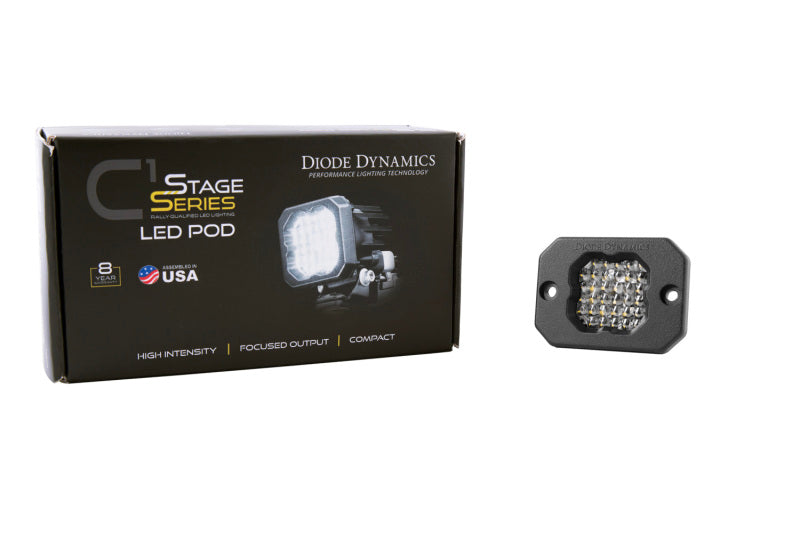

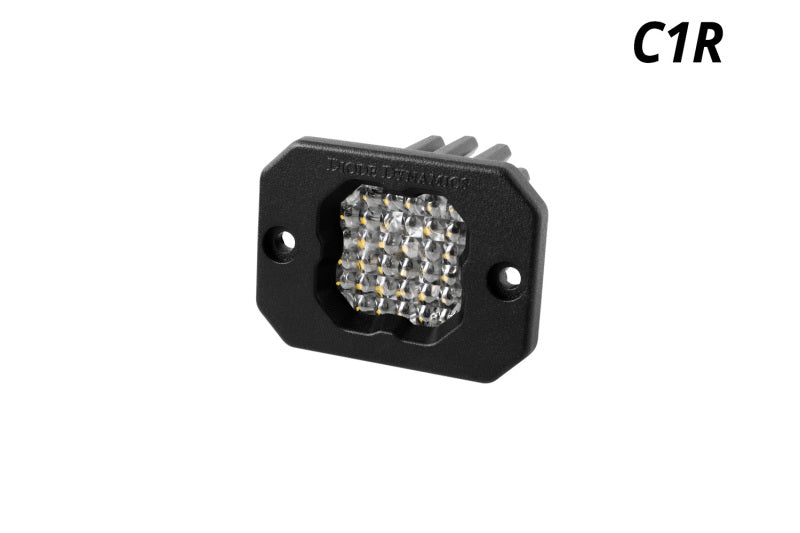

Diode Dynamics Stage Series C1R - White Flood Flush Mount LED Pod (one)

Features

Ultra-compact, single-LED form factor
Triple function: high-power white main beam, high-power red main beam, and low-power red accent light
Pin-fin heatsink design, for superior thermal dissipation
Integrated Deutsch-style connector
Designed, torture-tested and assembled in USA


Overview
Introducing the Stage Series C1R LED Pod! Featuring custom-engineered TIR optics combined with a single high-power LED chip, these pods have been designed to provide three different lighting functions, in our most compact, versatile package yet. Thanks to its compact size, the C1R can be mounted virtually anywhere on your car, truck, motorcycle, or UTV, including spots where larger LED pods won't fit.
Triple Function. The Stage Series C1R LED pod features a cool white main beam, along with a high-power red main beam and low-power red accent light that can be activated independently. The C1R was designed to serve as a high-power reverse light along with your factory reverse lights, a 4th brake light when your brakes are applied, and a secondary running light with your tail lights.
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the Stage Series C1R collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.
Simple connections. All Stage Series C1R LED pods feature a custom-molded DT-type Deutsch-style connector on the back, and come with a 4-pin 6-inch pigtail with bare leads. The yellow wire on the pigtail powers high-power red, the red wire powers the white main beam, the blue wire powers low-power red, and the black wire is ground.
Featuring custom-engineered TIR optics combined with a single high-power LED chip these pods have been designed to provide three different lighting functions in our most compact versatile package yet.

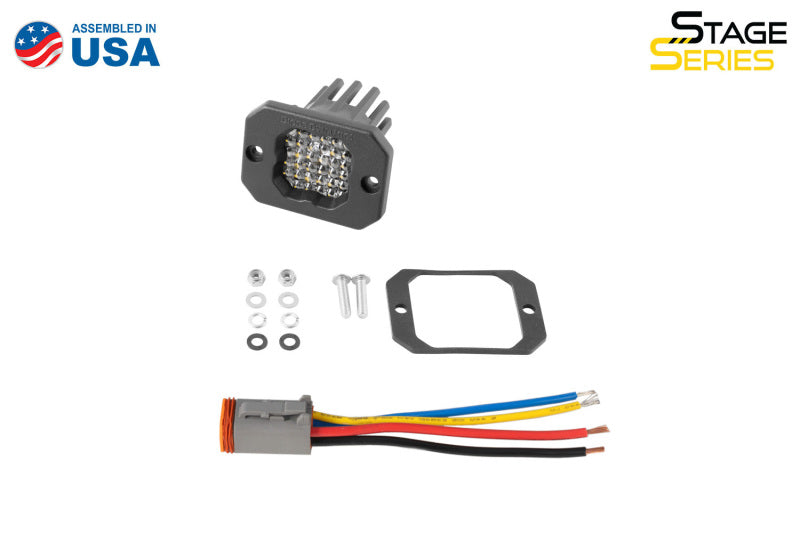

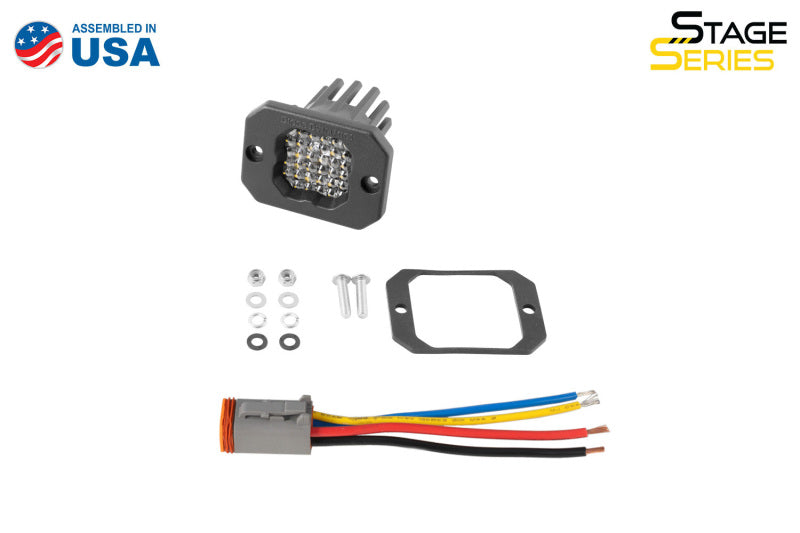

Included in the box:
One (1) Stage Series C1R LED Pods
One (1) Deutsch-style wire pigtails
One (1) Mounting bracket and hardware

• Triple function: white main beam red main beam and red accent light


• Designed tested and assembled in USA


• High-intensity automotive-type LEDs


• Integrated Deutsch-style connector


• Pin-fin heatsink design
