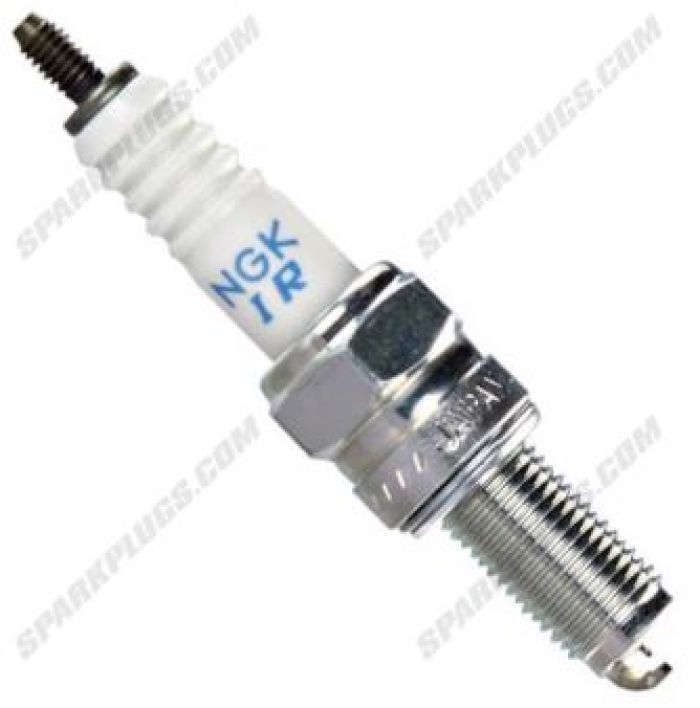

NGK 4286 CR8EIA-9 SPARK PLUG

NGK single iridium plugs were designed specifically for the performance enthusiast. Fine wire center electrode ensures high durability and a consistently stable spark. Iridium alloy has an extremely high melting point, perfect for today's high-tech, high performance engines.

• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties


• Corrugated ribs prevent flashover


• Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer


• Copper core aids in heat removal


• Triple seals prevent leakage

• Shell


•
  Thread Diameter10mm



•
  Thread Pitch1.0mm



•
  Seat TypeGasket



•
  Reach19mm (3/4")



•
  Hex Size5/8" (16mm)



•
  Terminal TypeThreaded Stud



•
  Overall HeightISO



•
  Gap.035" (0.9mm)


• Center Electrode


•
  MaterialIridium



•
  TypeFine Wire



•
  Size0.6mm



•
  ProjectionNon-Projected


• Ground Electrode


•
  MaterialPlatinum



•
  TypeStandard



•
  ShapeTaper Cut



•
  Quantity1


• Specifications


•
  ResistorYes



•
  Resistor Value5k Ohm



•
  Heat Range8



•
  Torque SpecsCast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft.


• Part Information


•
  BrandNGK/NTK



•
  Warranty60 Days



•
  Longevity100k Miles
